Thermal Break Stopper 150-45 System

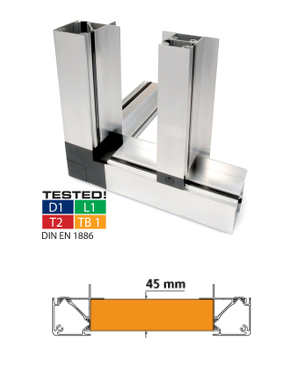

The Thermal Break Stopper 150-45 System is designed to assemble units requiring a nominal 1.75 up to 2 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP530-45 Corner Joint, ABPG530-45 Joining Corner, PTTBP150-45 Perimeter Profile, GBP250-45 Omega Joint, PTTBP351-45 Omega Profile, and PTTBP450-45 Joining Profile. Stopper Hardware includes the CBP-65 Hinge and B50FGC-BPO Panel Block.
ABP530-45 – Fiberglass Reinforced Nylon Corner Joint for PBP150-45 Profile
Weight: 0.353 Lbs / 160 g
Material: PA6 + GF20%
Fusion Temperature: 225-240 C
Color: Black
Additional Hardware: VTE Machine Screws for Stopper Corners
Screw: VTE6 x 65mm / Qty 1 necessary per corner
Screw: VTE6 x 45mm / Qty 2 necessary per corner
Material: Black Zinc Nickel
ABPG530-45 – Fiberglass Reinforced Nylon Joining Corner for PBP450-45 Profile
Weight: 0.331 Lbs / 150 g
Material: PA6 + GF20%
Fusion Temperature: 225-240 C
Color: Black
Additional Hardware: VTE Machine Screws for Stopper Corners
Screw: VTE6 x 65mm / Qty 1 necessary per corner
Screw: VTE6 x 45mm / Qty 2 necessary per corner
Material: Black Zinc Nickel
PTTBP150-45 – Thermal Break Stopper System Perimeter Profile
Material: 6063 Aluminum Extrusion
Dimensions: 2.19″W x 2.19″H with 0.79″ Flange – Stock Length 236″ / 6m
Weight: 1.249 Lbs/ft
Finish: Mill
Treatment: T5
GBP250-45 – Fiberglass Reinforced Nylon Corner Joint for PTTBP351-45 Omega Profile
Weight: 0.079 Lbs / 36 g
Material: PA6 + GF20%
Fusion Temperature: 225-240 C
Color: Black
PTTBP351-45 – Thermal Break Stopper System Omega Intermediate Support Profile
Material: 6063 Aluminum Extrusion
Dimensions: 1.57″W x 2.19″H with 0.79″ Flange – Stock Length 20ft
Weight: 1.169 Lbs/ft
Finish: Mill
Treatment: T5
PTTBP450-45 – Thermal Break Stopper System Joining Profile
Material: 6063 Aluminum Extrusion
Dimensions: 1.18″W x 2.19″H with 0.79″ Flange – Stock Length 20ft
Weight: 0.905 Lbs/ft
Finish: Mill
Treatment: T5
PBP-1000 – Stopper System Panel Clip Profile
Material: 6063 Aluminum Extrusion
Dimensions: 0.95″W x 0.27″H – Stock Length 20ft
Weight: 0.107 Lbs/ft
Finish: Mill
Treatment: T5
PBP-2000 – Stopper System Panel Clip Profile
Material: 6063 Aluminum Extrusion
Dimensions: 1.04″W x 0.37″H – Stock Length 20ft
Weight: 0.152 Lbs/ft
Finish: Mill
Treatment: T5
CBP-65-03 – Stopper Hinge
Material: EN AB 46100
Weight: 0.220 Lbs / 100 g
Size: 2.96″L x 2.36″W x 1.02″H
Finish: Paint
Color: Black
B50FGC.BPO – Fiberglass Reinforced Nylon Panel Retainer
Material: Fiberglass Reinforced Nylon PA6 + GF 20%
Weight: 0.044 Lbs / 20 g
Color: Black
