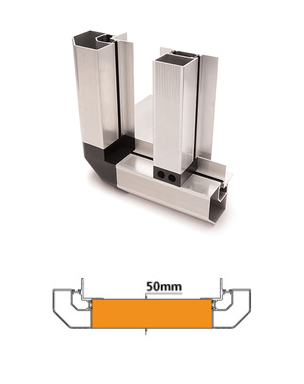

ASFG70-50
Fiberglass Reinforced Nylon Corner Joint for PTS170-50 Profile
- Weight:
- 0.615 Lbs / 279 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
Thermal Break
Thermal Break 170-50 System
The TB 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Components to this system include the ASFG70-50 Corner Joint, PTS170-50 Perimeter Profile, GFGTS40-50 Omega Joint, and PTS270-50 Omega Profile.
Select an image to view its details and choose what to add to your quote request.
- Series
- 170-50
- Panel thickness
- 50mm
- Thermal break
- Yes
Add all 4 parts
Or call 713-538-2050 · Mon–Fri 7am–4pm CT
The TB 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Components to this system include the ASFG70-50 Corner Joint, PTS170-50 Perimeter Profile, GFGTS40-50 Omega Joint, and PTS270-50 Omega Profile.
Parts you can order
Each part of the Thermal Break 170-50 System has its own code. Add any of them to your quote request.
PTS170-50
Thermal Break Perimeter Profile
- Material:
- EN AW 6060 Aluminum Extrusion
- Dimensions:
- 2.76″W x 2.13″H with 0.79″ Flange – Stock Length 236″ / 6m
- Weight:
- 1.383 Lbs/ft
- Finish:
- Mill
- Treatment:
- T6
GFGTS40-50
Fiberglass Reinforced Nylon Omega Joint for PTS270-50 Intermediate Support Profile
- Weight:
- 0.088 Lbs / 40 g
- Material:
- PA6 + GF20%
- Fusion Temperature:
- 225-240 C
- Color:
- Black
PTS270-50
Thermal Break Omega Intermediate Support Profile
- Material:
- EN AW 6060 Aluminum Extrusion
- Dimensions:
- 2.76″W x 2.13″H with 0.79″ Flange – Stock Length 236″ / 6m
- Weight:
- 1.032 Lbs/ft
- Finish:
- Mill
- Treatment:
- T6
