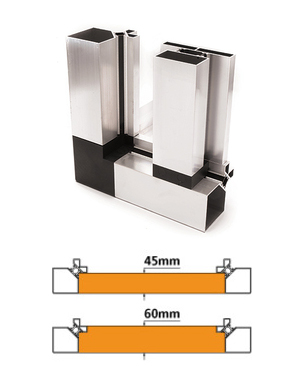

Thermal Break 160-45 System

---

The TB 160-45 System is designed to assemble units requiring a nominal 1.75 or 2.5 inch wall thickness. Components to this system include the APSAFG60-25 Corner Joint, APSTT160-45 Perimeter Profile, GFGTT60-45 Omega Joint, and APSTT260-45 Omega Profile.

---

APSAFG60-45 – Fiberglass Reinforced Nylon Corner Joint for APSTT160-45 Profile

Weight: 0.441 Lbs / 200 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black

---

APSTT160-45 – Thermal Break Perimeter Profile

Material:  Aluminum Extrusion EN AW 6060

Dimensions: 2.36″W x 2.48″H with 0.79″ Flange – Stock Length 19.5ft

Weight: 1.266 Lbs/ft

Finish: Mill

Treatment: T6

---

GFGTT60-45 – Fiberglass Reinforced Nylon Omega Joint for PTT260-25 Intermediate Support Profile

Weight: 0.084 Lbs / 38 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black

---

APSTT260-45 – Thermal Break Omega Intermediate Support Profile

Material: Aluminum Extrusion EN AW 6060

Dimensions: 2.36″W x 2.48″H with 0.79″ Flange – Stock Length 19.5ft

Weight: 1.452 Lbs/ft

Finish: Mill

Treatment: T5
