Standard 170-50 System

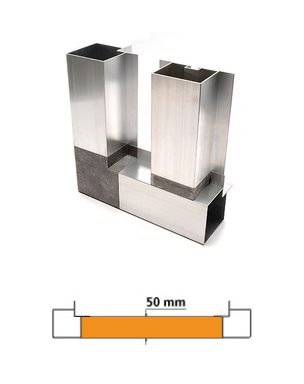

The Standard 170-50 System is designed to assemble units requiring a nominal 2 inch wall thickness. Aluminum components to this system include the AC730-50 Corner Joint, P170-50 Perimeter Profile, GOP270-50 Omega Joint, P270-50 Omega Profile, P271-50 Omega Profile, and P370-50 Omega Profile.


AC730-50 – Corner Joint for P170-50 Profile

Weight: 1.823 Lbs / 827 g

Material: EN AB 46100

Finish: Natural


P170-50 – Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 2.76″W x 2.76″H with 0.79″ Flange – Stock Length 20ft

Weight: 1.06 Lbs/ft

Finish: Mill

Treatment: T5


GOP270-50 – Omega Joint for P270-50, & P271-50 Intermediate Support Profiles

Material: EN AB 46100

Weight: 0.397 Lbs / 170 g

Finish: Natural


P270-50 – Omega Intermediate Support Profile with Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 2.76″W x 2.11″H with 0.79″ Flange – Stock Length 20ft

Weight: 1.02 Lbs/ft

Finish: Mill

Treatment: T5


P271-50 – Omega Intermediate Support Profile, Smooth Interior, without Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 2.76″W x 2.11″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.985 Lbs/ft

Finish: Mill

Treatment: T5
