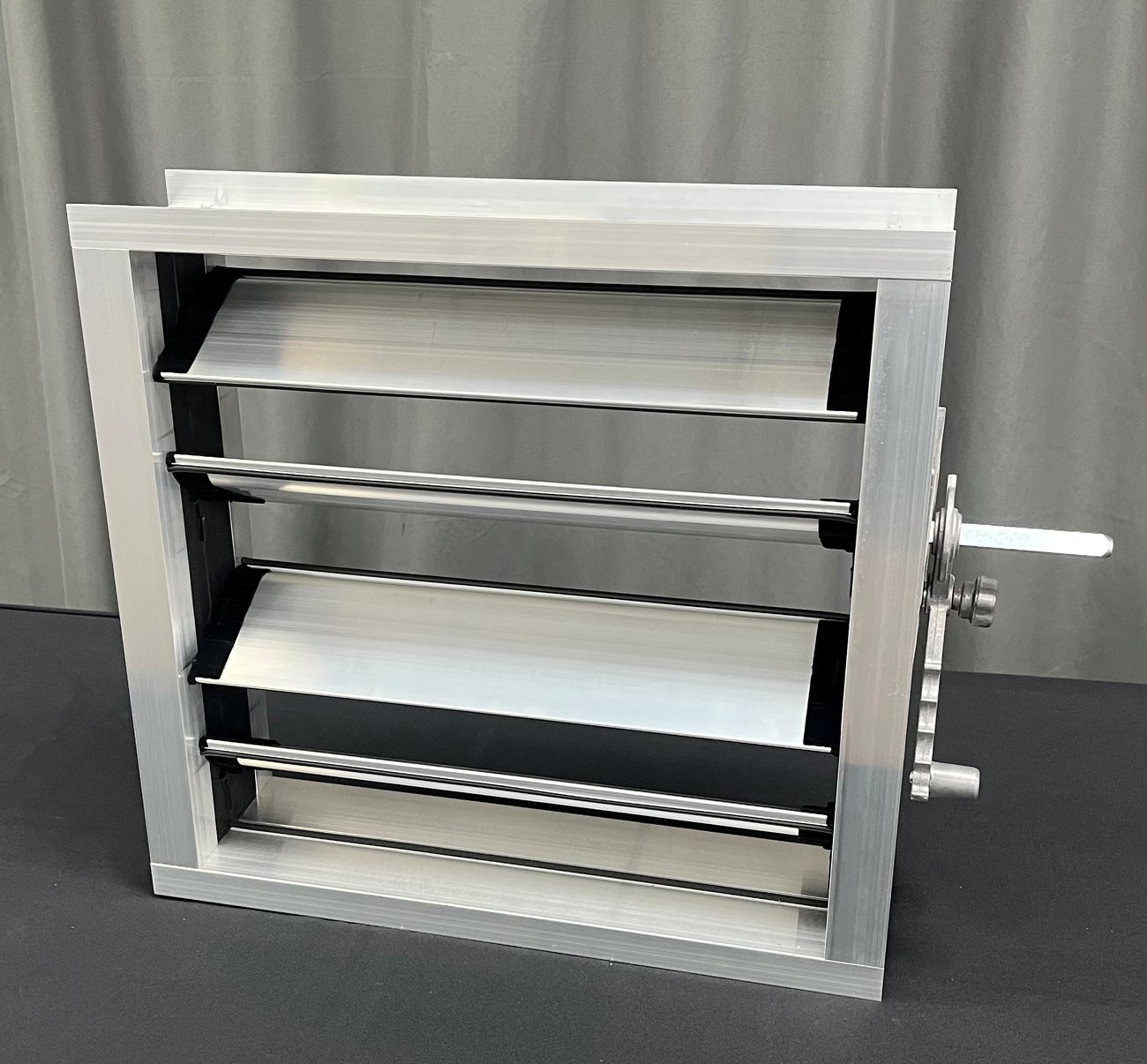

Low Leakage Damper



Our Low-Leakage Dampers are now AMCA Certified!



Boosting HVAC Performance with Modular Framing’s Low- Leakage Damper

In today’s energy-conscious world, optimizing HVAC performance isn’t just smart—it’s essential. US certifications are often required to provide customers with piece of mind that performance has been verified, and Modular Framing Systems is proud to announce that our Low-Leakage Damper is officially AMCA Class 1A certified!

Product Construction Details:

Blade

Part# PS100
Material: Aluminum 6063
Dimension: 4 in / 100 mm
Treatment: T5
Finish: Mill
GA12T Gasket: TPE-V and PP Thermoplastic Rubber

Frame

PS110-Top/Bottom
PS120-Side
PS130-Intermediate

Material: Aluminum 6063
Dimension: Nominal 5 in wide, U-shape
Treatment: T5
Finish: Mill

CPS93 Gear Kit

Part# CPS93
Material: Copolymer polypropylene and fiberglass
*Optional flame retardant V-5

Blade Blocks In Side and Intermediate Casing

Material: Polyammide and fiberglass PA6 + GF 20%
Color: Black

Control

1/2 in Galvanized Steel Square Control Shaft
Part# PFE190 – 190mm length
Part# PFE120 – 120mm length

*Optional Add-Ons

Part# MPS93 – Manual Handle
Material: Die-Cast Aluminum

Part# PMS80 – Mounting plate for motor
Material: EN AW 6060 Aluminum

Fasteners Used

Part# VTE1000 – 7mm hex-head screw
Part# Screw – 1/2″ Truss head
Material – Zinc-Plated Steel

Working Temperature
Minimum: -20 °C
Maximum: 80 °C
Single Section Maximum Width: 55 in.
