Blunted 140-25 System

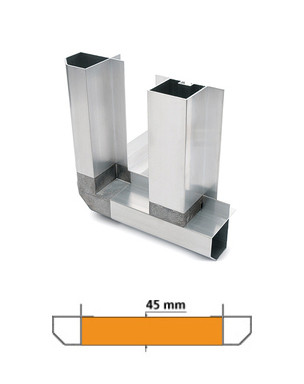

The Blunted 140-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS430-25 Corner Joint, PS140-25 Perimeter Profile, GOP240-25 Omega Joint, P240-25 Omega Profile, and P340-25 Omega Profile.


AS430-25 – Blunted Corner Joint for PS140-25 Profile

Weight: 0.560 Lbs / 254 g

Material: EN AB 46100

Finish: Natural




PS140-25 – Blunted Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 1.57″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.608 Lbs/ft

Finish: Mill

Treatment: T5


GOP240-25 – Omega Joint for P240-25 & P340-25 Intermediate Support Profiles

Material: EN AB 46100

Weight: 0.117 Lbs / 53 g

Finish: Natural




P240-25 – Omega Intermediate Support Profile with Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 1.12″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.554 Lbs/ft

Finish: Mill

Treatment: T5


P340-25 – Omega Intermediate Support Profile without Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 1.12″H with 0.79″ Flange – Stock Length 236″ / 6m

Weight: 0.539 Lbs/ft

Finish: Mill

Treatment: T5
