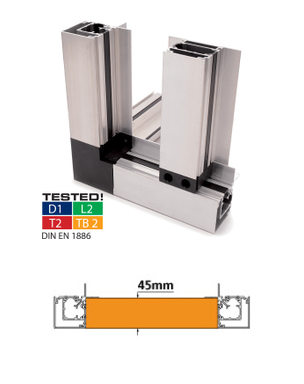

Thermal Break Stopper 150-45 System


The Thermal Break Stopper 150-45 System is designed to assemble units requiring a nominal 1.75 up to 2 inch wall thickness. Panels can easily be installed without the use of mechanical fasteners. Components to this system include the ABP530-45 Corner Joint, ABPG530-45 Joining Corner, PTTBP150-45 Perimeter Profile, GBP250-45 Omega Joint, PTTBP351-45 Omega Profile, and PTTBP450-45 Joining Profile. Stopper Hardware includes the CBP-65 Hinge and B50FGC-BPO Panel Block.


ABP530-45 – Fiberglass Reinforced Nylon Corner Joint for PBP150-45 Profile

Weight: 0.353 Lbs / 160 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black

Additional Hardware: VTE Machine Screws for Stopper Corners

Screw: VTE6 x 65mm / Qty 1 necessary per corner

Screw: VTE6 x 45mm / Qty 2 necessary per corner

Material: Black Zinc Nickel


ABPG530-45 – Fiberglass Reinforced Nylon Joining Corner for PBP450-45 Profile

Weight: 0.331 Lbs / 150 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black

Additional Hardware: VTE Machine Screws for Stopper Corners

Screw: VTE6 x 65mm / Qty 1 necessary per corner

Screw: VTE6 x 45mm / Qty 2 necessary per corner

Material: Black Zinc Nickel


PTTBP150-45 – Thermal Break Stopper System Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 2.19″W x 2.19″H with 0.79″ Flange – Stock Length 236″ / 6m

Weight: 1.249 Lbs/ft

Finish: Mill

Treatment: T5


GBP250-45 – Fiberglass Reinforced Nylon Corner Joint for PTTBP351-45 Omega Profile

Weight: 0.079 Lbs / 36 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black


PTTBP351-45 – Thermal Break Stopper System Omega Intermediate Support Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 2.19″H with 0.79″ Flange – Stock Length 20ft

Weight: 1.169 Lbs/ft

Finish: Mill

Treatment: T5


PTTBP450-45 – Thermal Break Stopper System Joining Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.18″W x 2.19″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.905 Lbs/ft

Finish: Mill

Treatment: T5


PBP-0000 – Stopper System Panel Clip Profile

Material: 6063 Aluminum Extrusion

Dimensions: 0.67″W x 0.27″H – Stock Length 20ft

Weight: 0.085 Lbs/ft

Finish: Mill

Treatment: T5


PBP-1000 – Stopper System Panel Clip Profile

Material: 6063 Aluminum Extrusion

Dimensions: 0.95″W x 0.27″H – Stock Length 20ft

Weight: 0.107 Lbs/ft

Finish: Mill

Treatment: T5


PBP-2000 – Stopper System Panel Clip Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.04″W x 0.37″H – Stock Length 20ft

Weight: 0.152 Lbs/ft

Finish: Mill

Treatment: T5


CBP-65-03 – Stopper Hinge

Material: EN AB 46100

Weight: 0.220 Lbs / 100 g

Size: 2.96″L x 2.36″W x 1.02″H

Finish: Paint

Color: Black


B50FGC.BPO – Fiberglass Reinforced Nylon Panel Retainer

Material: Fiberglass Reinforced Nylon PA6 + GF 20%

Weight: 0.044 Lbs / 20 g

Color: Black


GA.0500 – Foam Gasket for Stopper Doors

Material: EPDM

Length: 1,312 ft per box / 400m per box

Color: Black
