Blunted 130-25 System

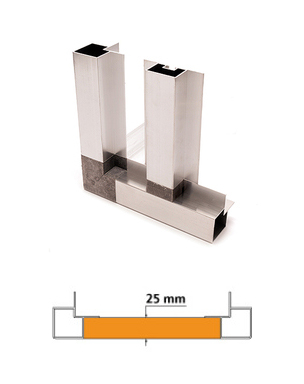

The Blunted 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AS330-25 Corner Joint, PS130-25 Perimeter Profile, GOP231-25 Omega Joint, and P231-25 Omega Profile.


AS330-25 – Blunted Corner Joint for PS130-25 Profile

Weight: 0.353 Lbs / 160 g

Material: EN AB 46100

Finish: Natural




PS130-25 – Blunted Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.18″W x 1.18″H with 0.75″ Flange Stock Length 20ft

Weight: 0.406 Lbs/ft

Finish: Mill

Treatment: T5


GOP231-25 – Omega Joint for P231-25 Intermediate Support Profile

Material: EN AB 46100

Weight: 0.095 Lbs / 43 g

Finish: Natural


P231-25 – Omega Intermediate Support Profile with Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.18″W x 1.12″H with 0.75″ Flange – Stock Length 20ft

Weight: 0.474 Lbs/ft

Finish: Mill

Treatment: T5
