Standard 150-45 System

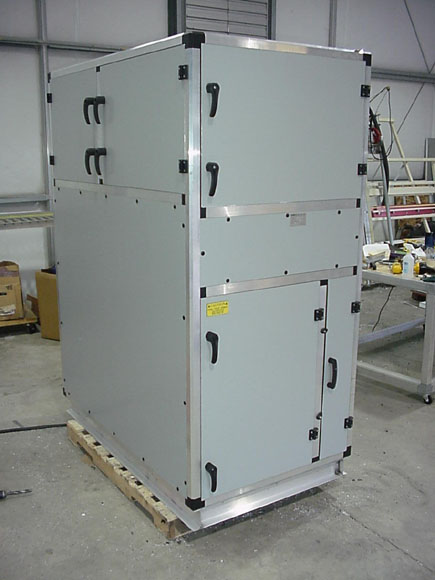

The Standard 150-45 System is designed to assemble units requiring a nominal 1 3/4 inch wall thickness. Aluminum components to this system include the AC530-45 Corner Joint, P150-45 Perimeter Profile, GOP250-45 Omega Joint, P250-45 Omega Profile, P251-45 Omega Profile, and P350-45 Omega Profile. Fiberglass Reinforced Nylon hardware is also available for this system. Corner Joint AFG530-45 is the nylon alternative for aluminum Corner Joint AC530-45, and Omega Joint GFG250-45 is the alternative to our GOP250-45.


AC530-45 – Corner Joint for P150-45 Profile

Weight: 1.047 Lbs / 475 g

Material: EN AB 46100

Finish: Natural


AFG530-45 – Fiberglass Reinforced Nylon Corner Joint for P150-45 Profile

Weight: 0.426 Lbs / 193 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black


P150-45 – Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.768 Lbs/ft

Finish: Mill

Treatment: T5


GOP250-45 – Omega Joint for P250-45, P251-45 & P340-45 Intermediate Support Profiles

Material: EN AB 46100

Weight: 0.265 Lbs / 120 g

Finish: Natural


GFG250-25 – Fiberglass Reinforced Nylon Omega Joint for P250-45, P251-45 and P340-45 Intermediate Support Profiles

Weight: 0.101 Lbs / 246 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black


P250-45 – Omega Intermediate Support Profile with Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.935 Lbs/ft

Finish: Mill

Treatment: T5


P251-45 – Omega Intermediate Support Profile, Smooth Interior, without Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft

Weight: 1.016 Lbs/ft

Finish: Mill

Treatment: T5


P350-25 – Omega Intermediate Support Profile without Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.97″W x 1.97″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.732 Lbs/ft

Finish: Mill

Treatment: T5
