Standard 140-25 System

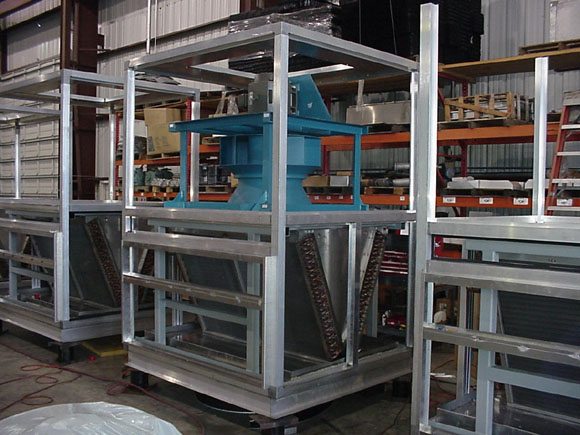

The Standard 140-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the AC430-25 Corner Joint, P140-25 Perimeter Profile, GOP240-25 Omega Joint, P240-25 Omega Profile, and P340-25 Omega Profile. Fiberglass Reinforced Nylon hardware is also available for this system. Corner Joint AFG430-25 is the nylon alternative for aluminum Corner Joint AC430-25, and Omega Joint GFG240-25 is the alternative to our GOP240-25.


AC430-25 – Corner Joint for P140-25 Profile

Weight: 0.750 Lbs / 340 g

Material: EN AB 46100

Finish: Natural


AFG430-25 – Fiberglass Reinforced Nylon Corner Joint for P140-25 Profile

Weight: 0.258 Lbs / 117 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black


P140-25 – Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 1.57″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.571 Lbs/ft

Finish: Mill

Treatment: T5


GOP240-25 – Omega Joint for P240-25 & P340-25 Intermediate Support Profiles

Material: EN AB 46100

Weight: 0.117 Lbs / 53 g

Finish: Natural


GFG240-25 – Fiberglass Reinforced Nylon Omega Joint for P240-25 and P340-25 Intermediate Support Profiles

Weight: 0.046 Lbs / 21 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black


P240-25 – Omega Intermediate Support Profile with Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 1.12″H with 0.79″ Flange – Stock Length 20ft

Weight: 0.554 Lbs/ft

Finish: Mill

Treatment: T5


P340-25 – Omega Intermediate Support Profile without Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.57″W x 1.12″H with 0.79″ Flange – Stock Length 236″ / 6m

Weight: 0.539 Lbs/ft

Finish: Mill

Treatment: T5
