Standard 130-25 System

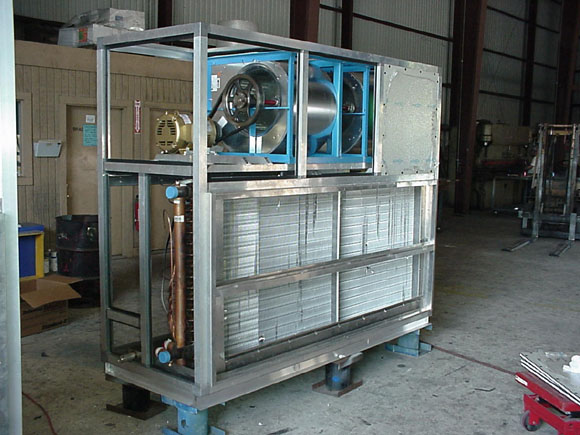

The Standard 130-25 System is designed to assemble units requiring a nominal 1 inch wall thickness. Aluminum components to this system include the A330-25 Corner Joint, P130-25 Perimeter Profile, GOP231-25 Omega Joint, and P231-25 Omega Profile. Fiberglass Reinforced Nylon hardware is also available for this system. Corner Joint AFG330-25 is the nylon alternative for aluminum Corner Joint A330-25.


A330-25 – Corner Joint for P130-25 Profile

Weight: 0.298 Lbs / 135 g

Material: EN AB 46100

Finish: Natural


AFG330-25 – Fiberglass Reinforced Nylon Corner Joint for P130-25 Profile

Weight: 0.163 Lbs / 74 g

Material: PA6 + GF20%

Fusion Temperature: 225-240 C

Color: Black


P130-25 – Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 1.18″W x 1.18″H with 0.75″ Flange – Stock Length 20ft

Weight: 0.455 Lbs/ft

Finish: Mill

Treatment: T5


GOP231-25 – Omega Joint for P231-25 Intermediate Support Profile

Material: EN AB 46100

Weight: 0.095 Lbs / 43 g

Finish: Natural


P231-25 – Omega Intermediate Support Profile with Bolt Track

Material: 6063 Aluminum Extrusion

Dimensions: 1.18″W x 1.12″H with 0.75″ Flange – Stock Length 20ft

Weight: 0.474 Lbs/ft

Finish: Mill

Treatment: T5
