Standard 120-10 System

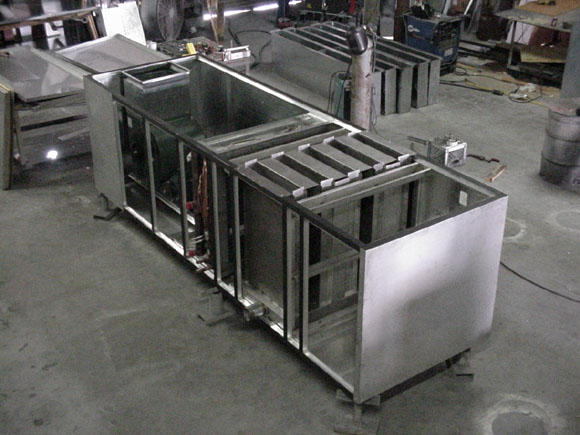

The Standard 120-10 System is designed to assemble units requiring a nominal 1/2 inch wall thickness. Components to this system include the A230-10 Corner Joint and corresponding P120-10 Perimeter Profile.


A230-10 – Corner Joint for P120-10 Perimeter Profile

Weight: 0.176 Lbs / 80 g

Material: EN AB 46100

Finish: Natural


P120-10 – Perimeter Profile

Material: 6063 Aluminum Extrusion

Dimensions: 0.79″W x 0.79″H with 0.59″ Flange – Stock Length 236″ / 6m

Weight: 0.389 Lbs/ft

Finish: Mill

Treatment: T5
